RV refrigerator repair: what usually fails and what a fix costs

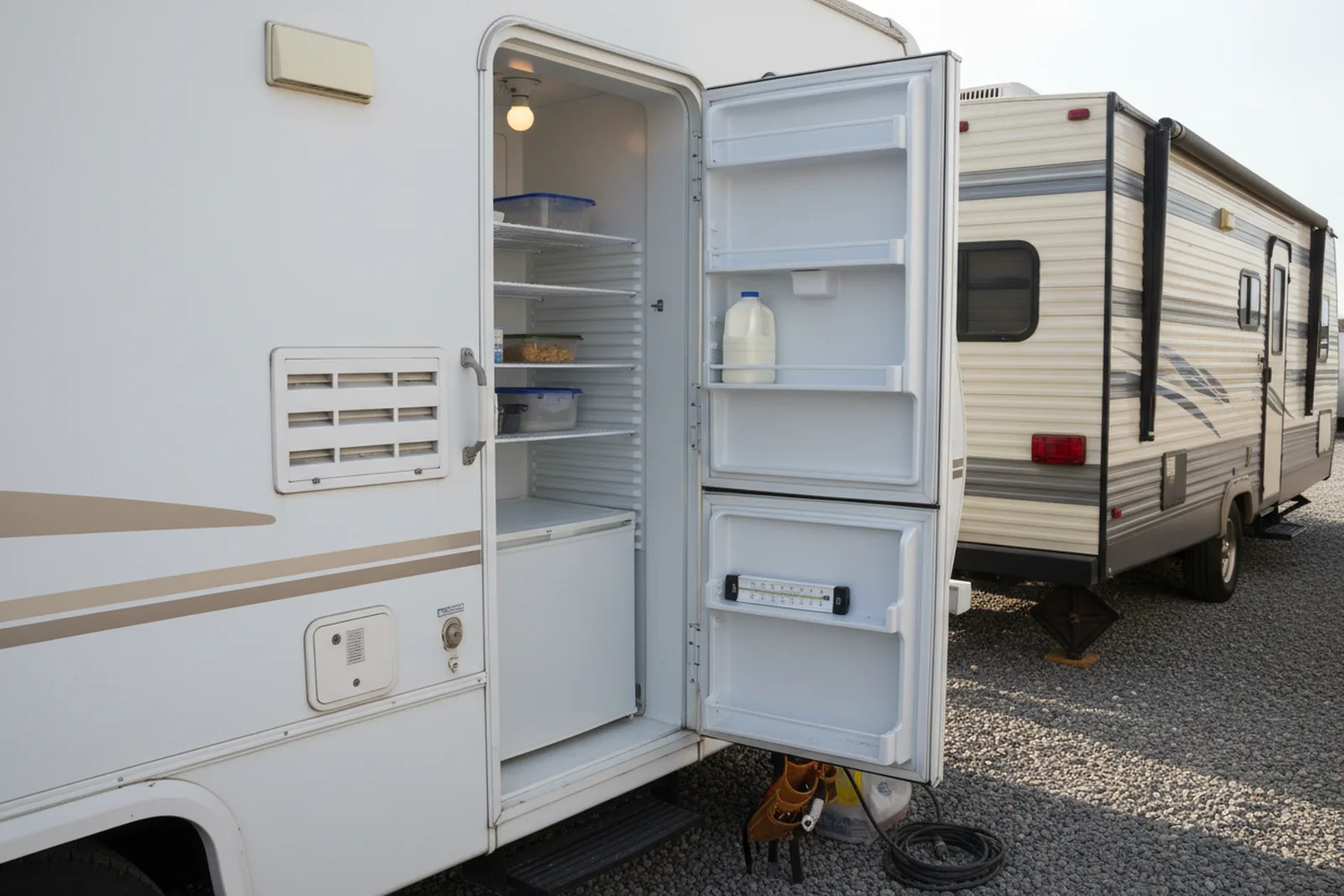

The July sun over Moab was doing a number on both of us. My fifth wheel’s fridge display read 50 degrees, ice cream had gone soft, and I knew I was in for an RV refrigerator repair. I knew what that meant for the next morning: frozen gel packs in the cooler, the outside panel off, and my multimeter out. Cooling failures are usually quicker to diagnose than the drive to the nearest shop, unless you need RV repair in Kansas City. That day the fix was a $30 heating element and a flue packed with spider webs.

Most absorption fridge problems come down to a handful of simple parts. If yours is acting up, calling a couple of RV repair in Kansas City shops or mobile techs will get you a real price before you hand over a diagnostic fee.

How an absorption fridge makes cold

No compressor in these. Heat boils an ammonia-water mix, the ammonia gas condenses and evaporates in a closed loop, and that pulls heat out of the box. The heat source is either a propane flame or a 120-volt electric element. Gravity returns the liquid, so the whole cycle needs the fridge reasonably level. Tilt it too far and the mixture pools wrong. Cooling quits.

If the fridge runs but wont get cold, look at airflow through the rear vent first. A blocked vent, a dead cooling fan, or a rig parked broadside to hot sun can push the box temp up 10 or 15 degrees.

When it’s more than a vent cleaning, comparing mobile RV repair techs nationwide is the smart move. A local search like RV refrigerator repair in Kansas City turns up both shops and techs who come to you. Summer heat in Mesa kills fridges, so the RV refrigerator repair in Mesa listings are full of techs who know absorption systems cold. Phoenix and Las Vegas are the same. A lot of RV refrigerator repair in Phoenix work is cooling fans and clogged burners, and the techs who do RV refrigerator repair in Las Vegas carry common elements and igniters because those fail in the heat.

Troubleshooting table: what usually fails in an RV refrigerator repair

Here’s the short version of what I check first. The first column is what the fridge is doing, not a part number.

Symptom	Most likely cause	Typical part cost
No cooling on propane or electric, no heat at the back	Control board dead, no 12-volt to the fridge	$50 to $250
Cools on propane, not on electric	Heating element failed, fuse or circuit breaker tripped	$25 to $60
Cools on electric, not on propane	Burner dirty, igniter spark gap out of adjustment, gas valve not opening, flue blocked	$15 to $60 plus cleaning
Fridge warm in hot weather, runs fine at night	Rear vent airflow blocked, cooling fan dead, or fridge in direct sun	$20 to $100 for a fan
Smell of ammonia or yellow powder near the burner	Cooling unit leak, fridge unsafe to run	$1,000 to $1,400 for a new cooling unit

This table is not a checkout you run from the driver’s seat. If you’re not comfortable with 120 volts, don’t start with the element. I learned that respect years ago on a furnace some homeowner had wired backwards.

This video walks through the whole troubleshooting process and saved me a lot of time. It’s worth a watch before you start poking around.

Works on propane but not on electric

An absorption fridge pulls about 300 watts of 120-volt heat on electric. The element sits in a tube near the boiler, just a resistance coil like a water heater element. Burn it out and the board usually goes quiet.

Kill shore power and measure resistance accross the element leads.

One more thing. If the fridge is dead on both modes, check the 12-volt supply to the control board. No 12 volts means no display, no ignition, no cooling. A corroded ground wire on the frame does the same thing. That wire is free to clean and I always do that before ordering parts.

Works on electric but not on propane

The propane side is a small gas burner with a spark igniter.

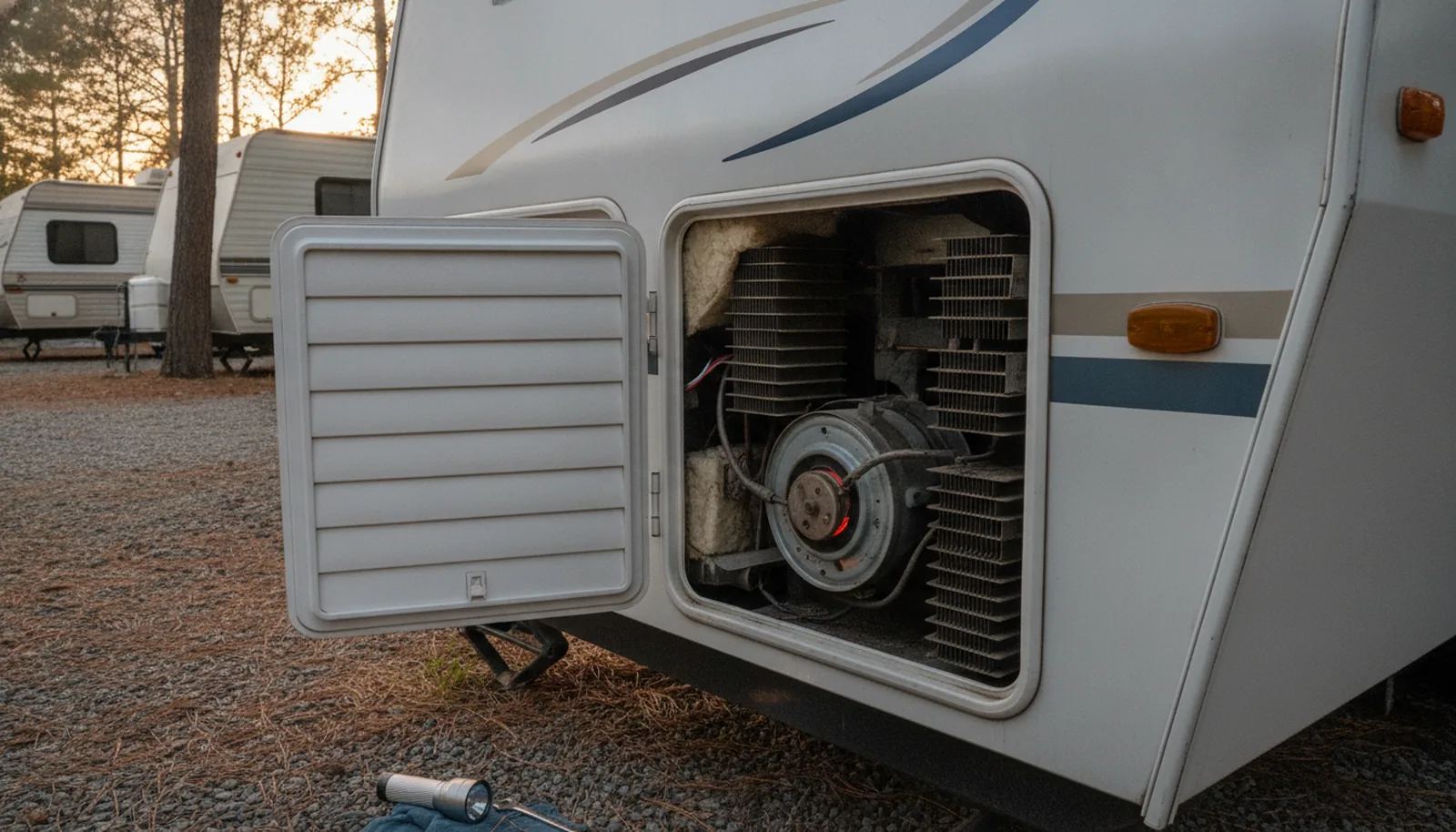

Pull the outside cover and look at the burner tube. A customer once fought his for a week with a new board he didn’t need. The actual fix was a little wire brush and a can of compressed air. Eight bucks total.

If the burner is clean and the igniter still sparks, check gas pressure with a manometer. Most RV fridges want a specific gas pressure at the burner, and a weak regulator or kinked line will starve it; a tech with a manometer can check it. LP work is where I tell owners to stop and call a tech. Soapy water finds leaks, but adjusting gas pressure takes a gauge and some experiance.

Ammonia smell or yellow powder means stop using it

A working absorption cooling unit stays sealed for life.

Don’t bang on the coils or tilt the fridge to get it going. A rust-thin boiler can open from a pinhole into a full rupture and then the fridge and everything in it gets hosed with ammonia water. I’ve seen what that does to a rig. The smell hangs around for a month.

A replacement cooling unit runs about $1,000 to $1,400 for the part, plus about $450 for a tech to install it. That’s a two-person job because the fridge has to come out of the cabinet. You can buy a whole new absorption fridge for $1,500 to $2,000, which is often the smarter call on a 15-year-old rig. Compare the labor on both before you spend a dime.

What a mobile tech checks first and what you should ask

When I roll up to a warm fridge, the first thing I do is put a hand on the boiler.

Ask the tech for a written estimate before they order parts. The diagnostic fee usually runs $100 to $200, or a $75 to $150 trip charge on top of the hourly rate. A second opinion is worth a phone call.

While the fridge is out, the tech shoudl check the roof vent and the rear baffle. Poor airflow kills more fridges than bad boards. If the roof vent is cracked or the seal is shot, that’s a roof leak waiting to happen. Our guide on RV roof repair walks through spotting that before the decking rots. And if the coach is hot because your AC gave up, that’s a diffrent problem, covered in our post on RV AC repair.

What I would do differently

That weekend in Moab, the fridge warmed up becuase the electric element had burned out and the propane side had a blocked flue. Had I pulled the vent cover and cleaned the flue two months earlier, the propane side would have taken over in the heat and I’d never have noticed the electric side was dead until October.

Now I check the rear vent every spring, and I run the fridge on propane for one day to keep the burner clean. If you’re not sure what you’re looking at, call two mobile techs and ask each for a written estimate.

What’s worth doing this weekend

Pull the outside lower vent off your fridge this weekend and vacuum the coils and burner. A clean fridge is a working fridge, and the small stuff catches more people than the big failures.

While the fridge is apart, put a can of compressed air in you’re tool kit and a spare 12-volt fuse in the drawer. Next time the display goes dark, you’ll know where to start. And before you order a cooling unit, call two shops and ask them to match the quote to your model. Prices swing a few hundred dollars, and the second call often pays for the trip charge.
